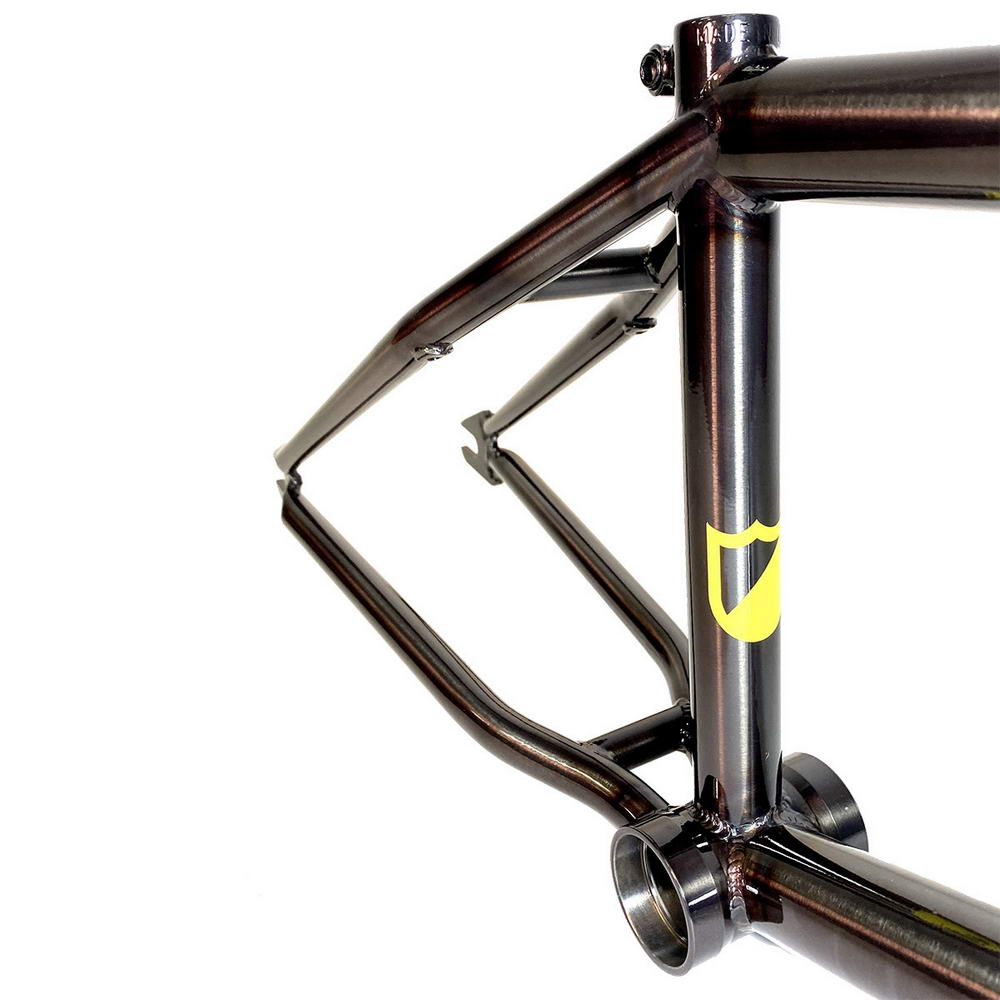

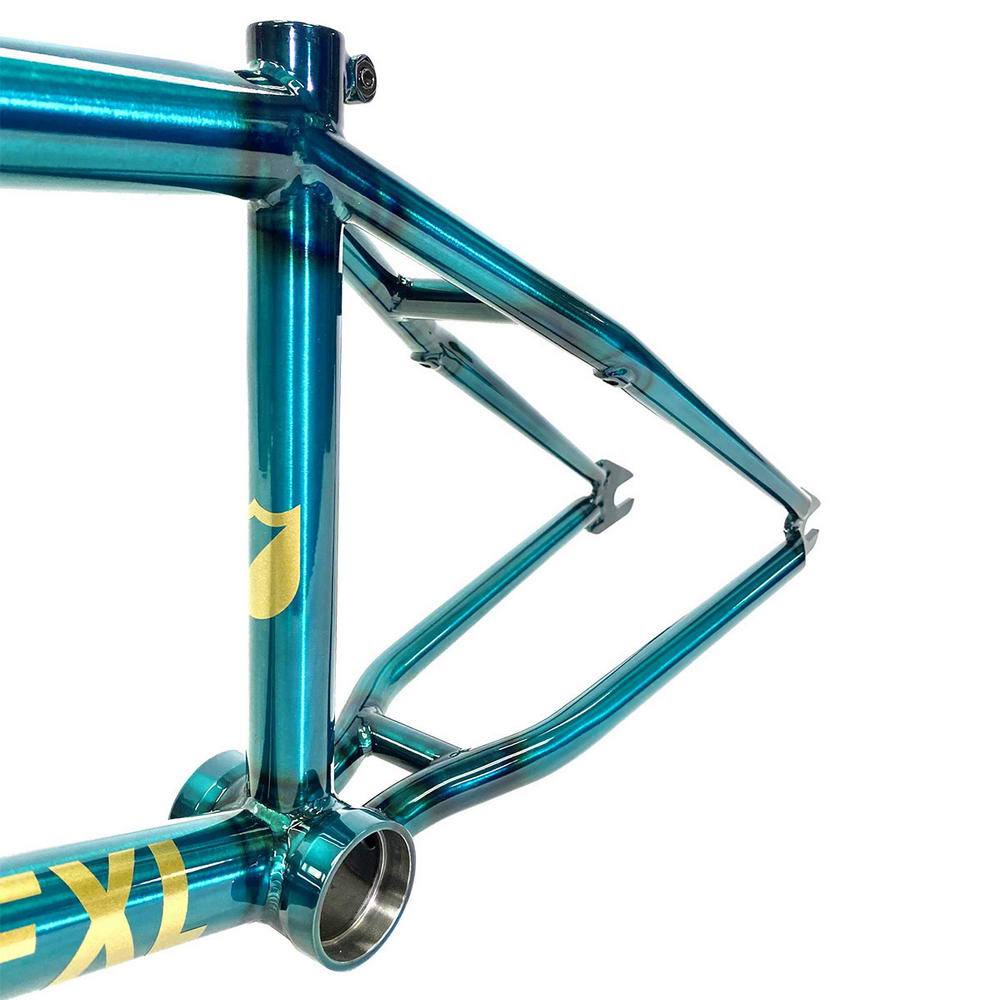

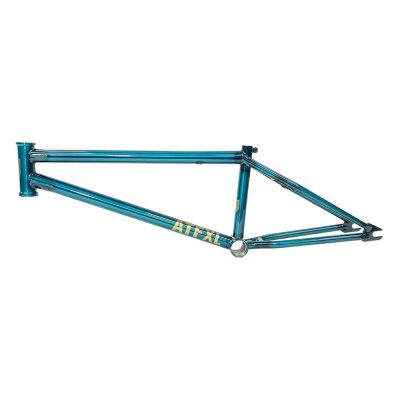

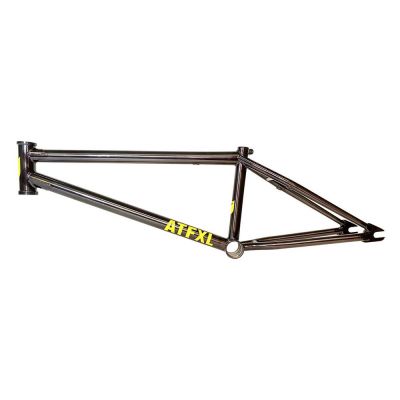

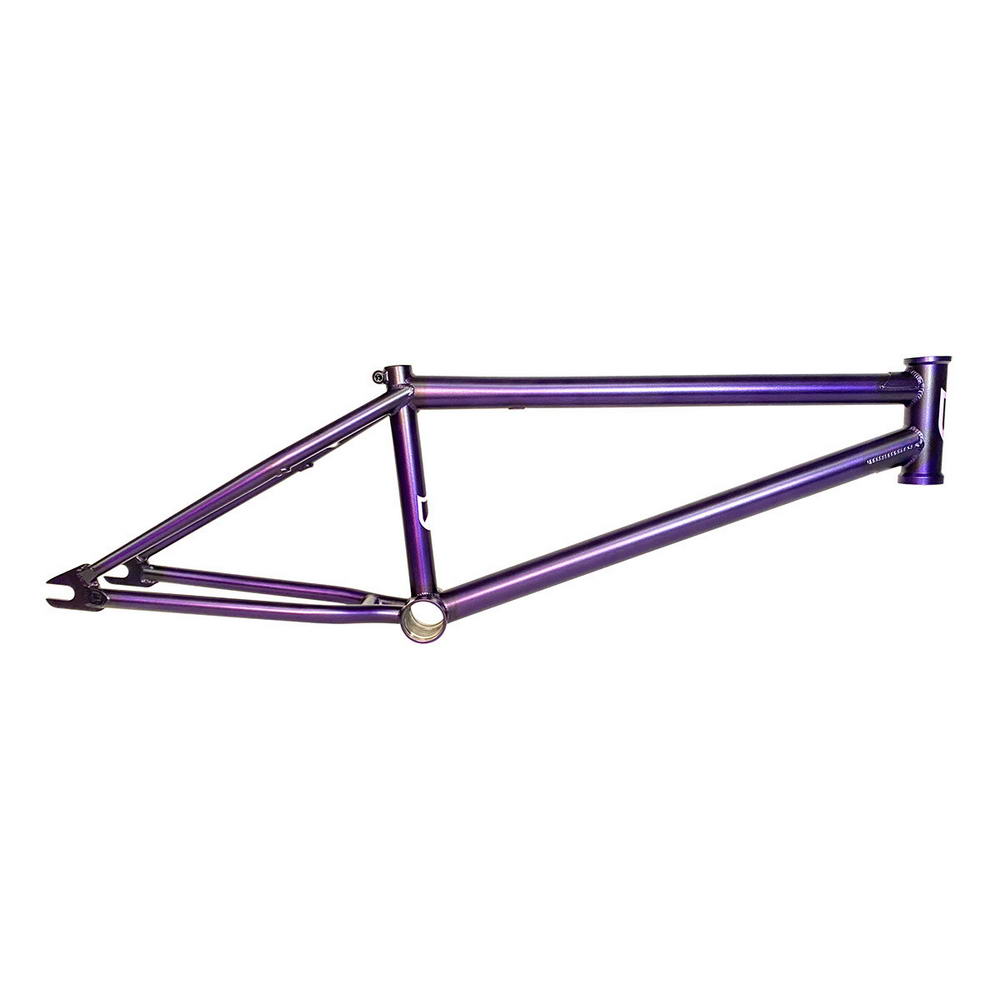

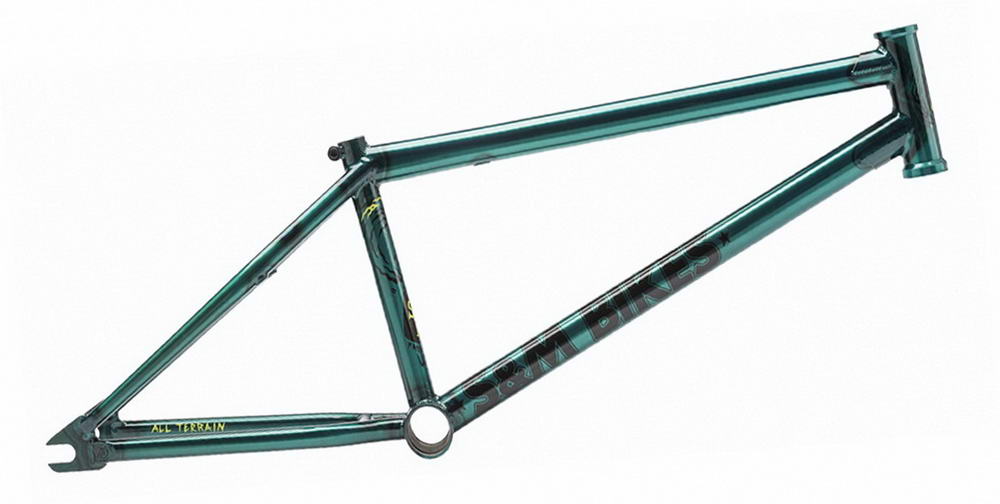

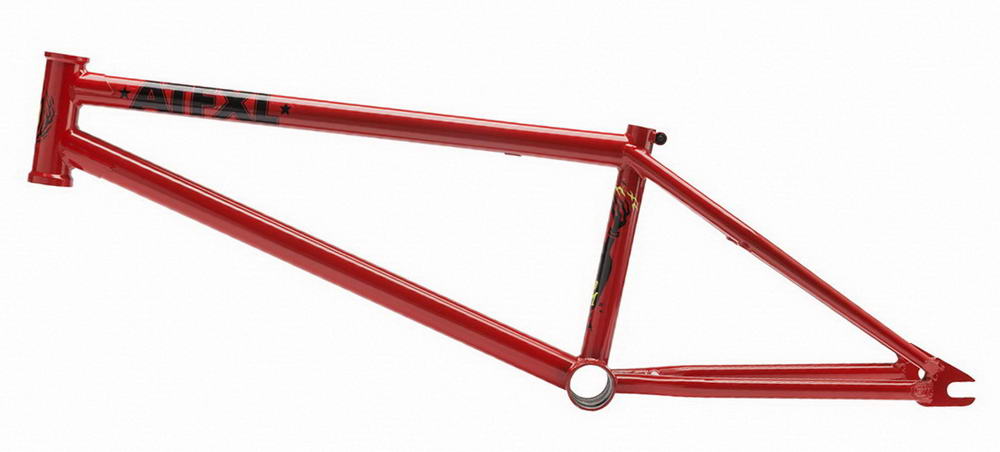

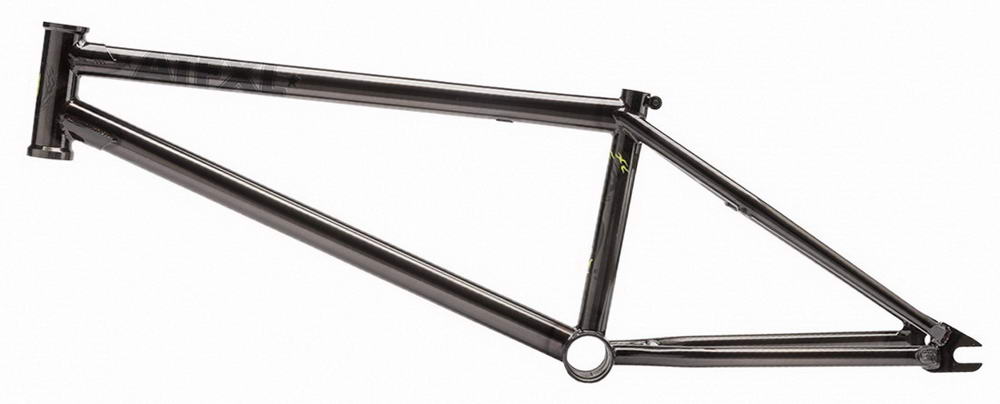

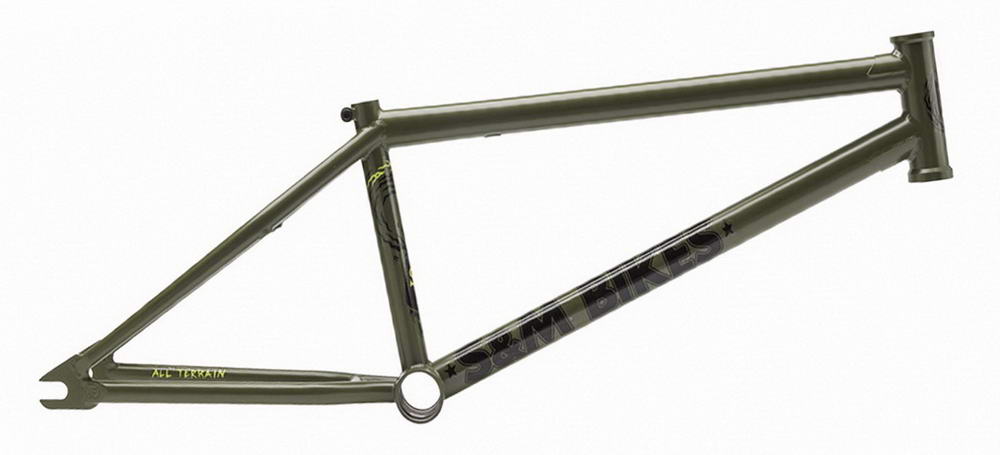

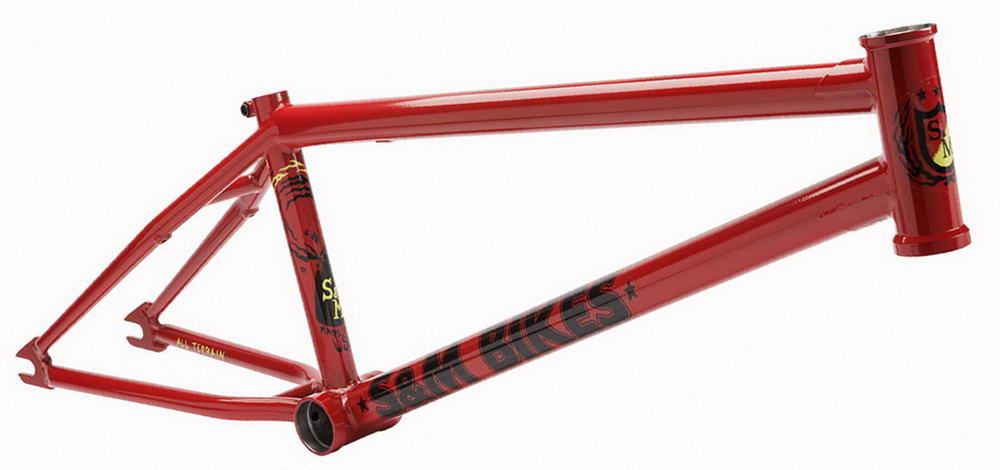

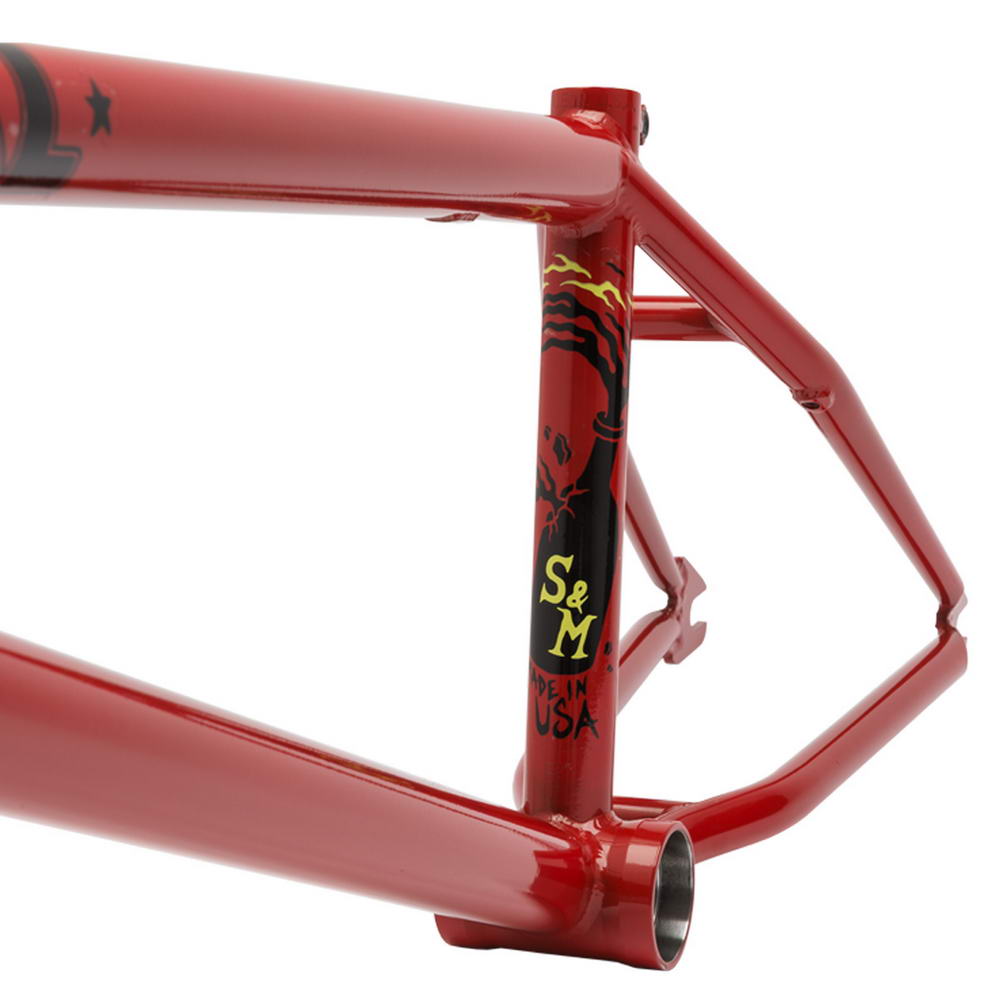

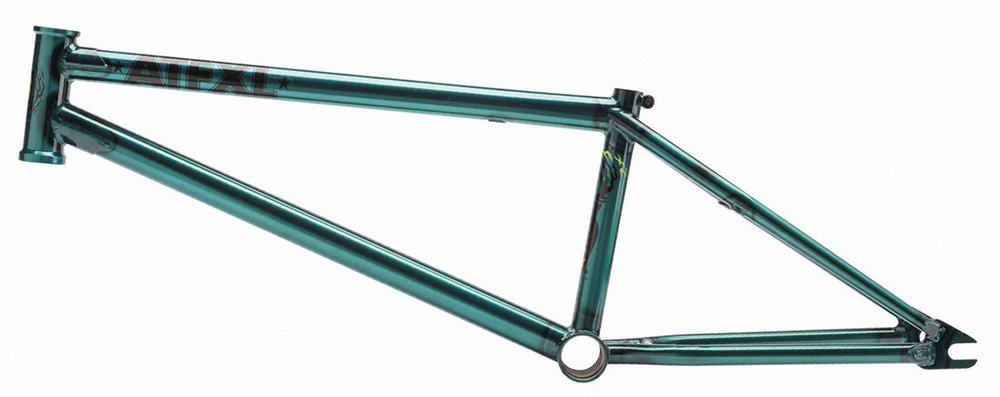

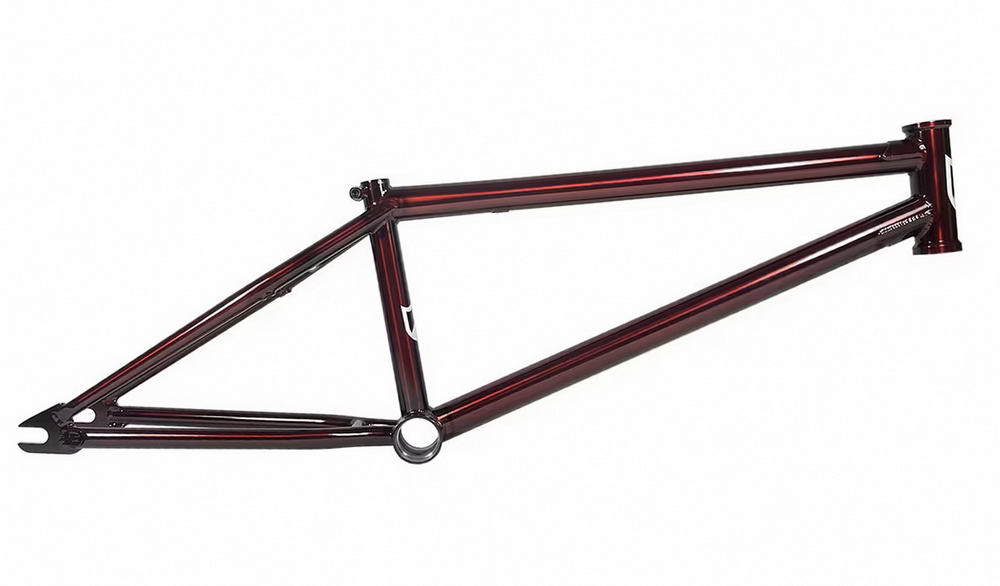

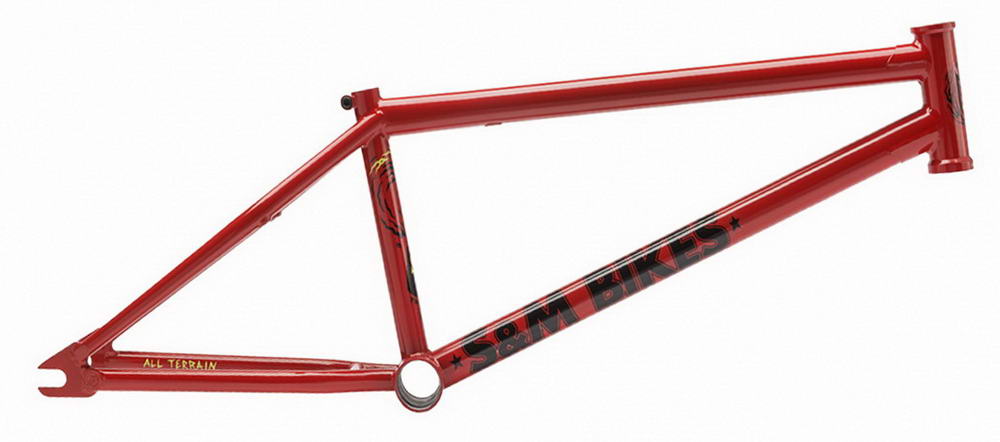

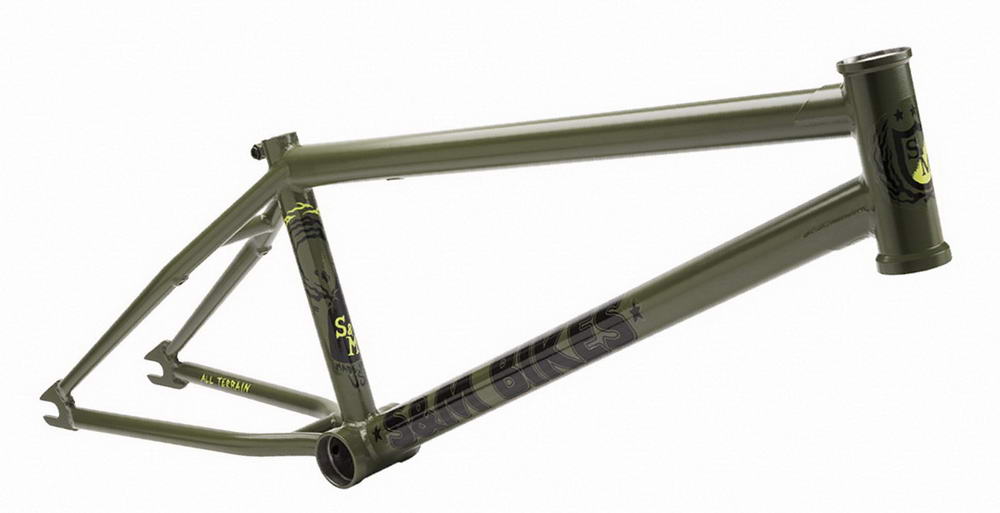

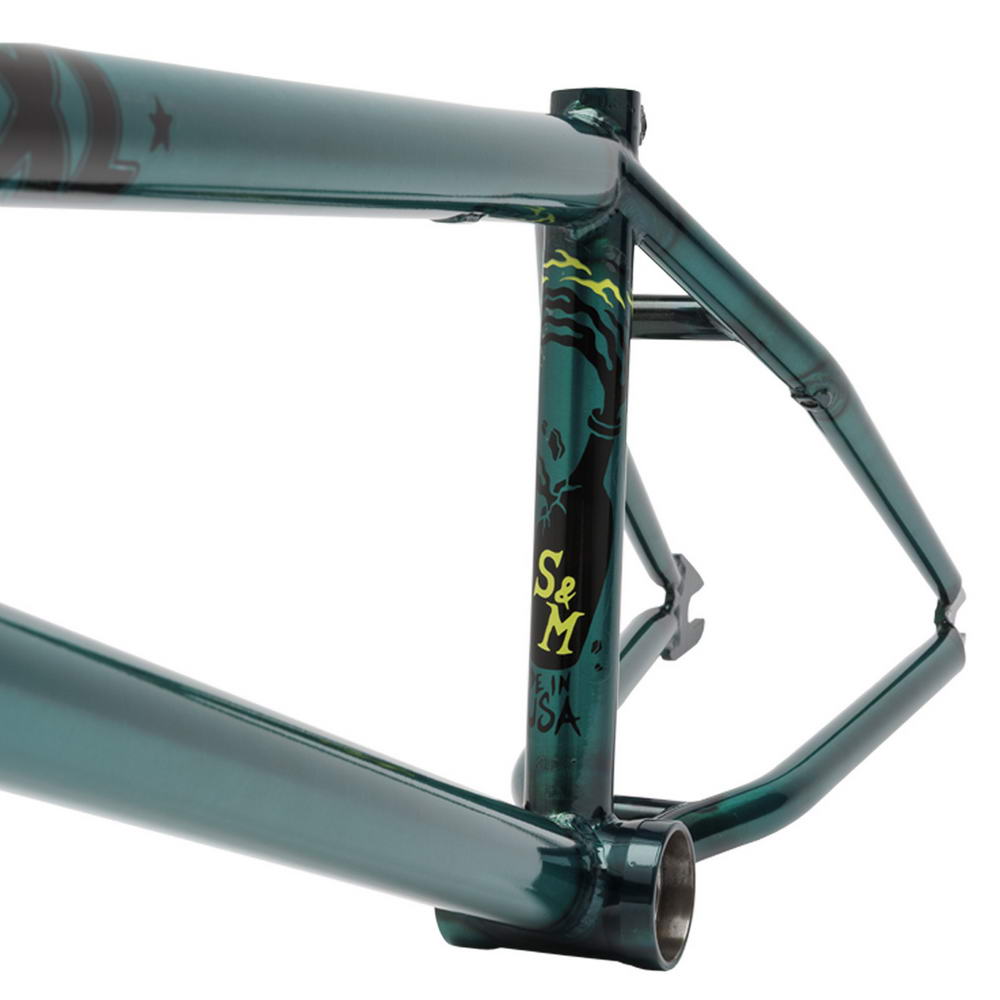

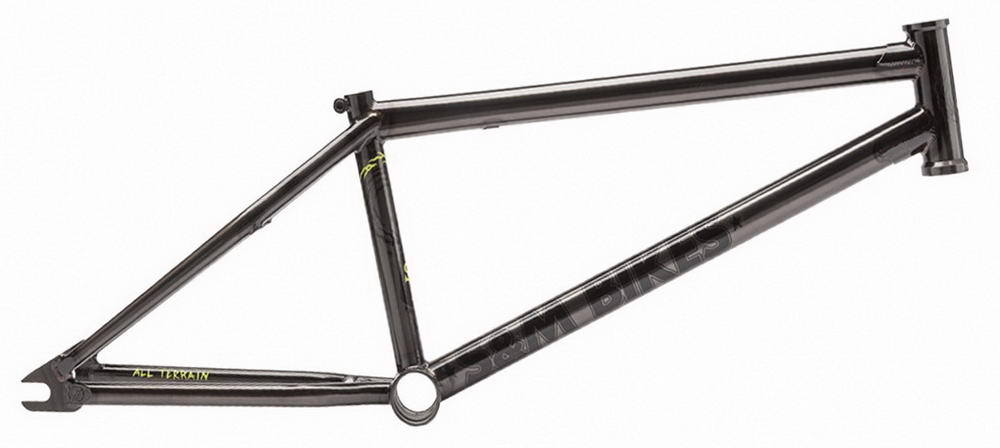

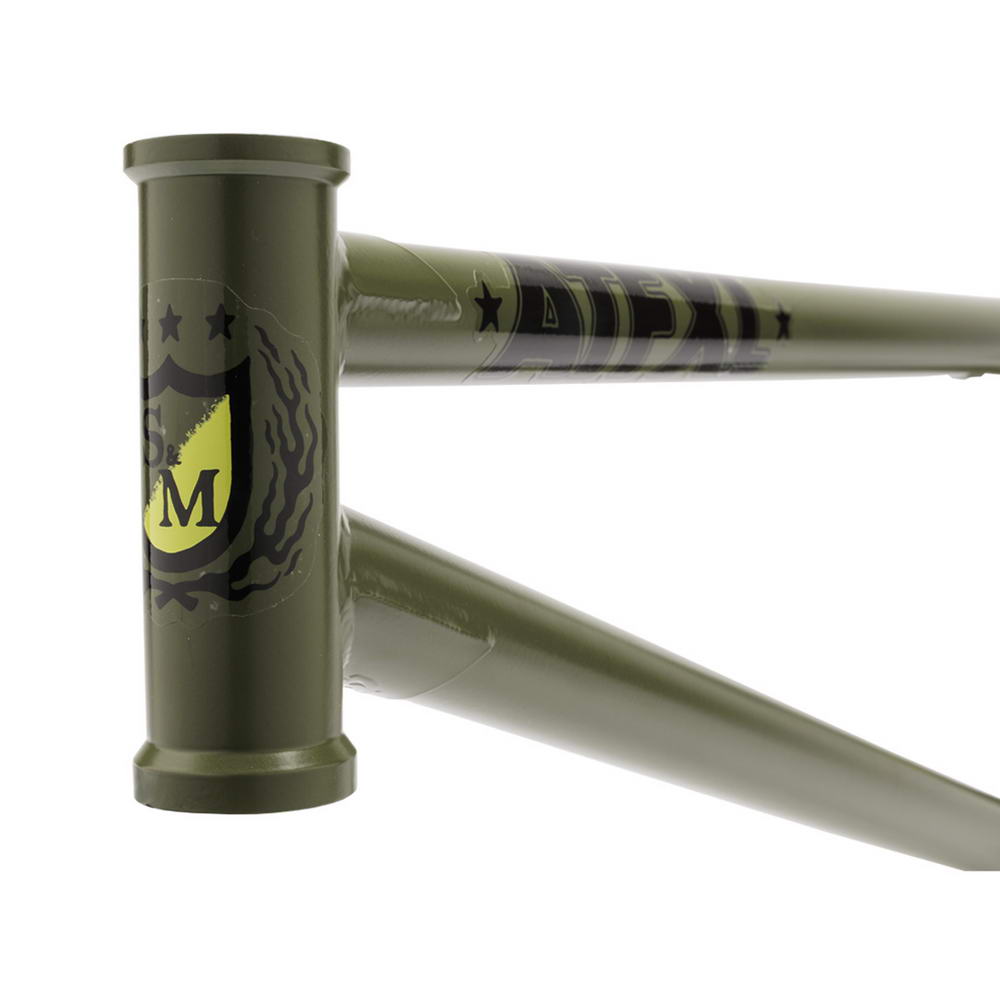

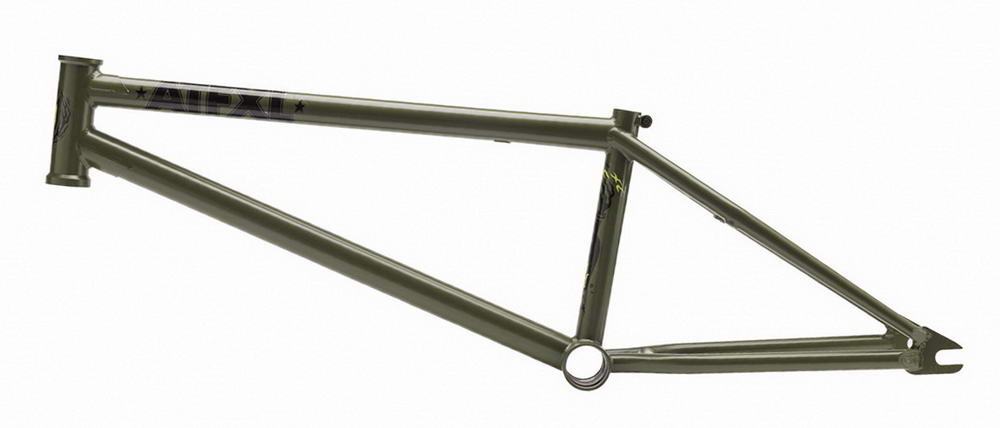

21 & up. The ATF XL takes the tried & true ATF frame to the next level. With a taller 5" head tube, 9" standover and extended top tube sizes up to 22", it's built for the tall team. The perfect blend of responsiveness and stability, ready for action on all terrains.
Made in USA
Top Tube Lengths: 21", 21.25", 21.5", 22"
Rear End Length: 13.4"
Head Tube Angle: 75°

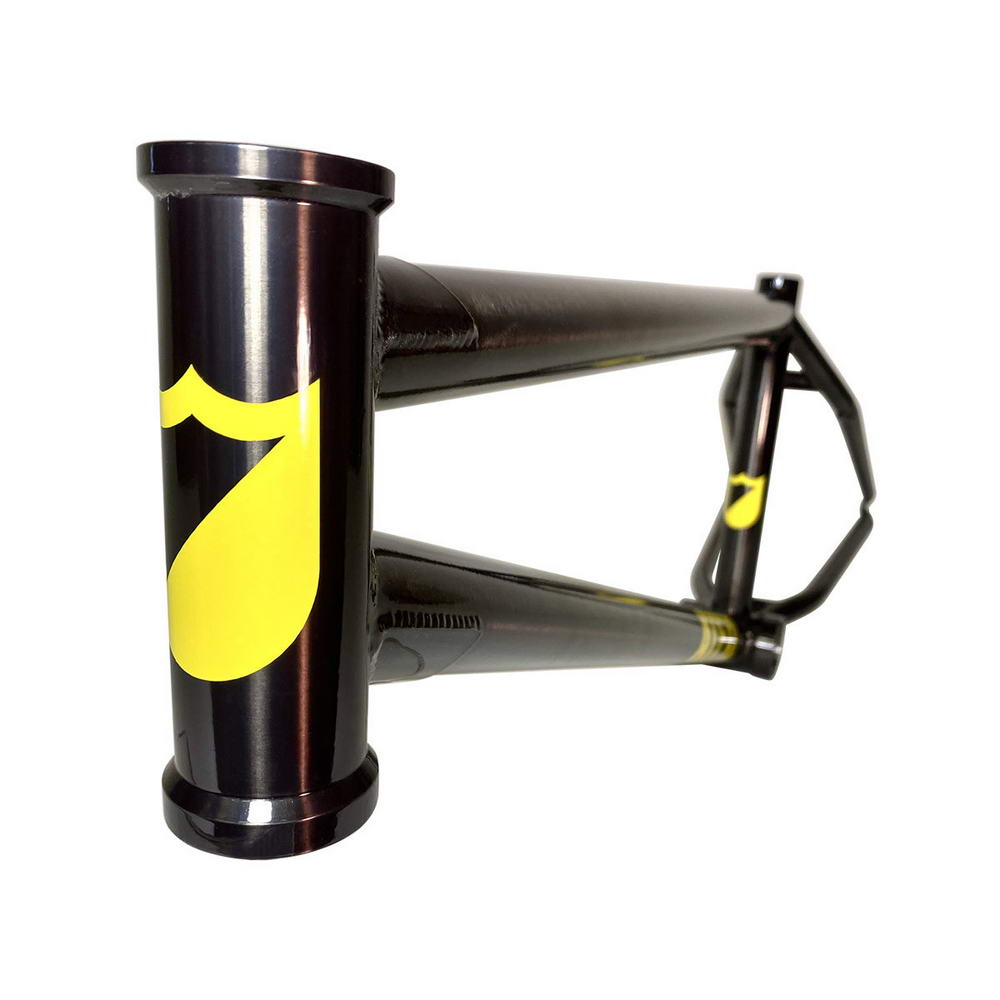

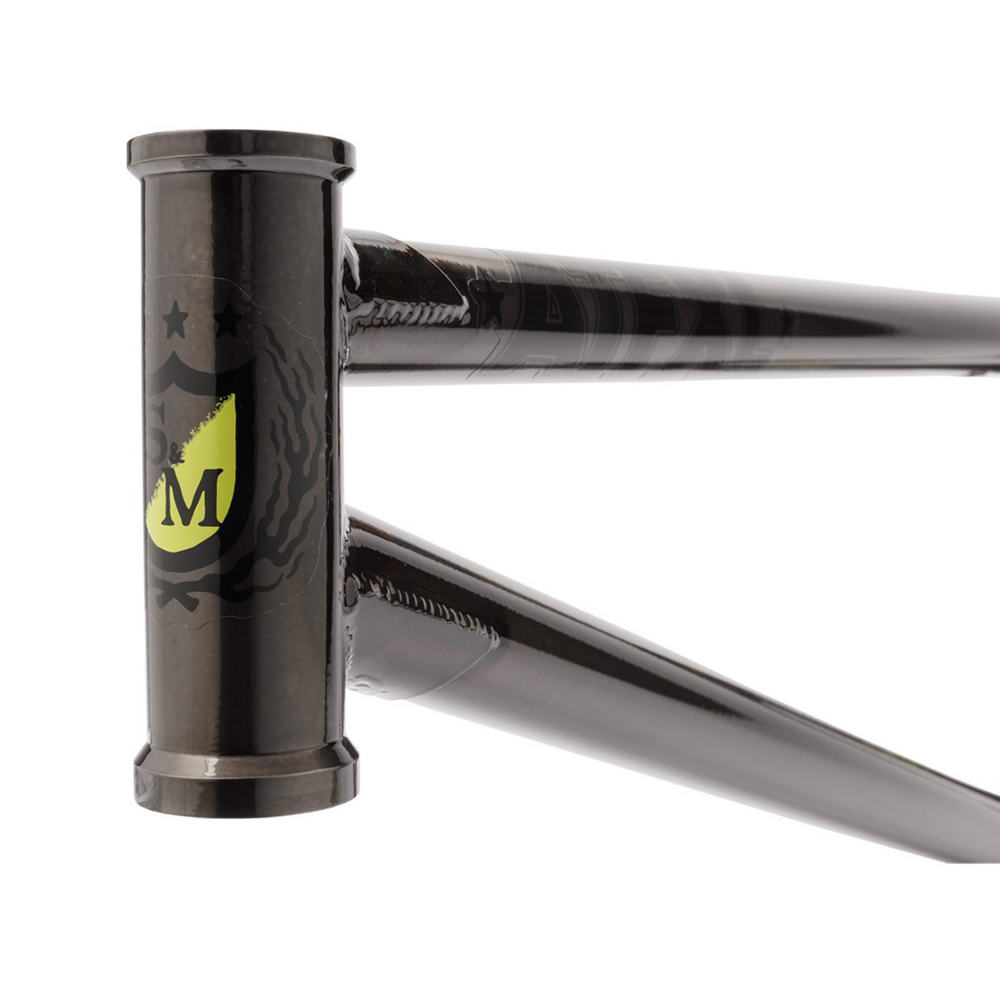

Head Tube Style: Integrated (45°/45°, 41.8mm)
Seat Tube Angle: 71°
Seat Clamp: Integrated
Seat Post Size: 1" (25.4mm)
BB Height: 11.7"
BB Style: Mid
Standover Height: 9"
Brake Mounts: Thread-On 990 Mounts (not included, sold separately)
Dropouts: 14mm Slot, 4Q-Baked
Gyro Tabs: None
Weight: 2.15 kg
Tube Set: Butted True Temper Super Therm Tubing
