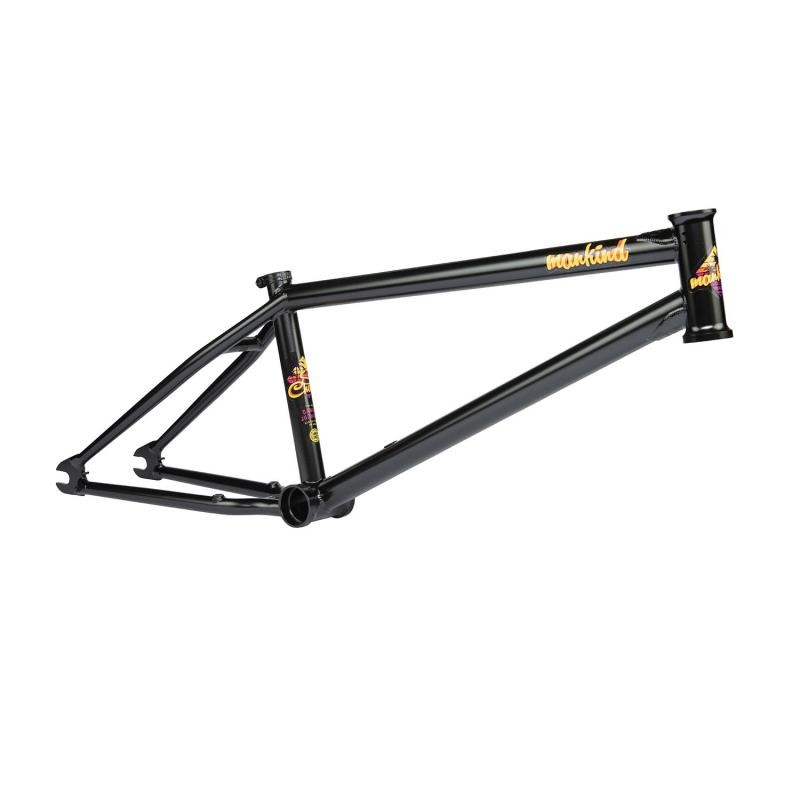

Daniel Juchatz signature frame
Material: Full 4130 Chromoly Sanko Japanese tubing
TT: ř 33.0mm tapered to 30.0mm x 1.2t*0.9t*1.2t Heat-treated
DT: ř 33.0mm x 1.2t*1.1t*1.2t Heat-treated
SS: ř 19.0mm tapered to 14.0mm x 1.0t. Heat-treated
CS: ř 19.0mm tapered to 16.0mm x 1.0t. Heat-treated
Seat Tube: Single butt, Heat-treated, Angle 71°
Standover: 9.0"
Head Tube: Heat-treated
HT Angle: 74.5°
BB: Cnc Heat-treated Lasser cut, 6mm , 4130 cr-mo
CS-Lenght: 13.75"
CS-Widht: 72mm fit 2.4" Tires
U-Brakes: No Brake Hardware included
Weight: 2.10kg
Specials: MK Top & Down Tube Gusset, int Seatclamp and Chain Tensioners
