Devon Smillie signature

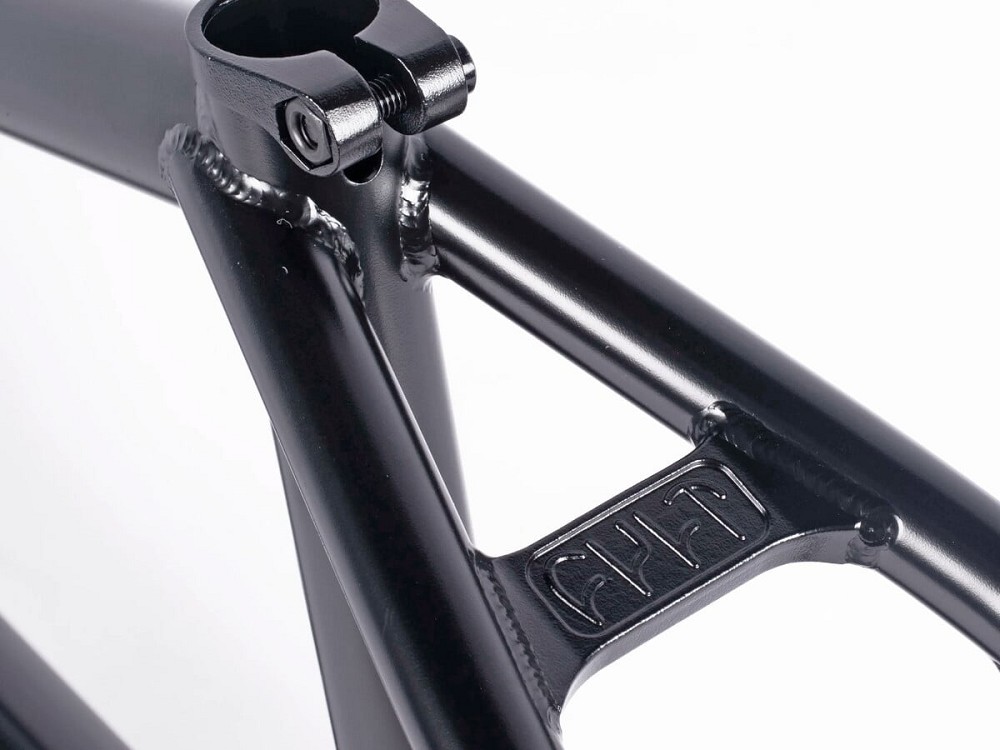

Material: 100% 4130 CrMo, top and downtube gusset, headtube for integrated head sets, integrated investment cast seat clamp, investment cast seat stay bridge, tappered seat stays, removable brakehardware, wide rear end for wide 2.4" tires
Geometry:
Top Tube Length (TT): 20.75", 21.0", 21.25", 21.5" or 21.8"
Chainstay Length (CS): 12.9" (32.77cm) - 13.2" (33.53cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 70°
Bottom Bracket Height: 11.7" (29.72cm)
Standover Height (SO): #98#
Seat Clamp: integrated investment cast
Seat Post Diameter: 25.4mm
Bottom Bracket: Mid BB
Dropouts: Investment cast, 5mm thick, 14mm slots
Chain Tensioners: without
Brake Type: U-Brake
Brakemounts: with (screwable, M6)
Brakemounts included with delivery: No
Gyro compatible: Yes
Features: Modern BMX street and allround frame, Wide rear end for 2.4" tires,s-bend chainstays
