Geometry:
Top Tube Length: 16.5"
Chain Stay Length: 11.20"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Stand Over Height: 6.6"
BB Height: 9.75"
Bar Height: 7.0"
Fork Offset: 28 mm

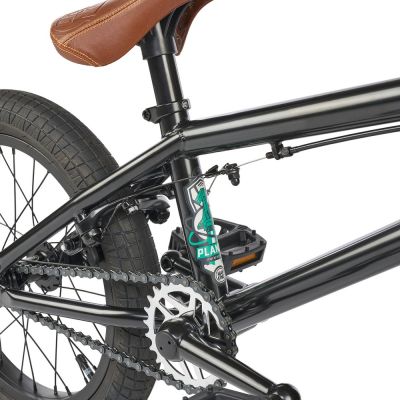

FRAME: 1020 Hi-Ten Steel Frame - Top & Down Tube Gusset
BRAKE MOUNTS: Welded

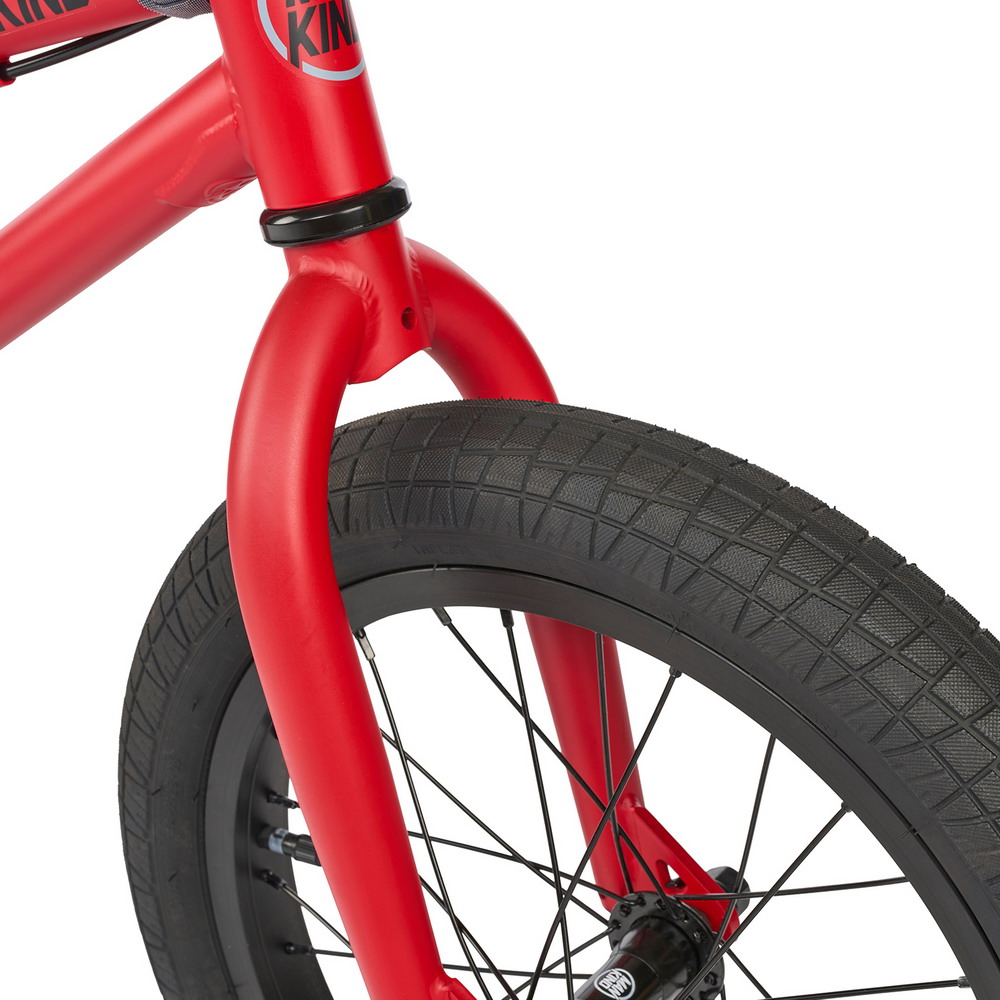

FORK: 1020 Hi-Ten Steel - 2-PC Steerer, Tapered Legs, 28 mm offset
BARS: 1020 Hi-Ten Steel, 7.0" Rise, 23.5" Width, 10° Back Sweep, 3° Up Sweep

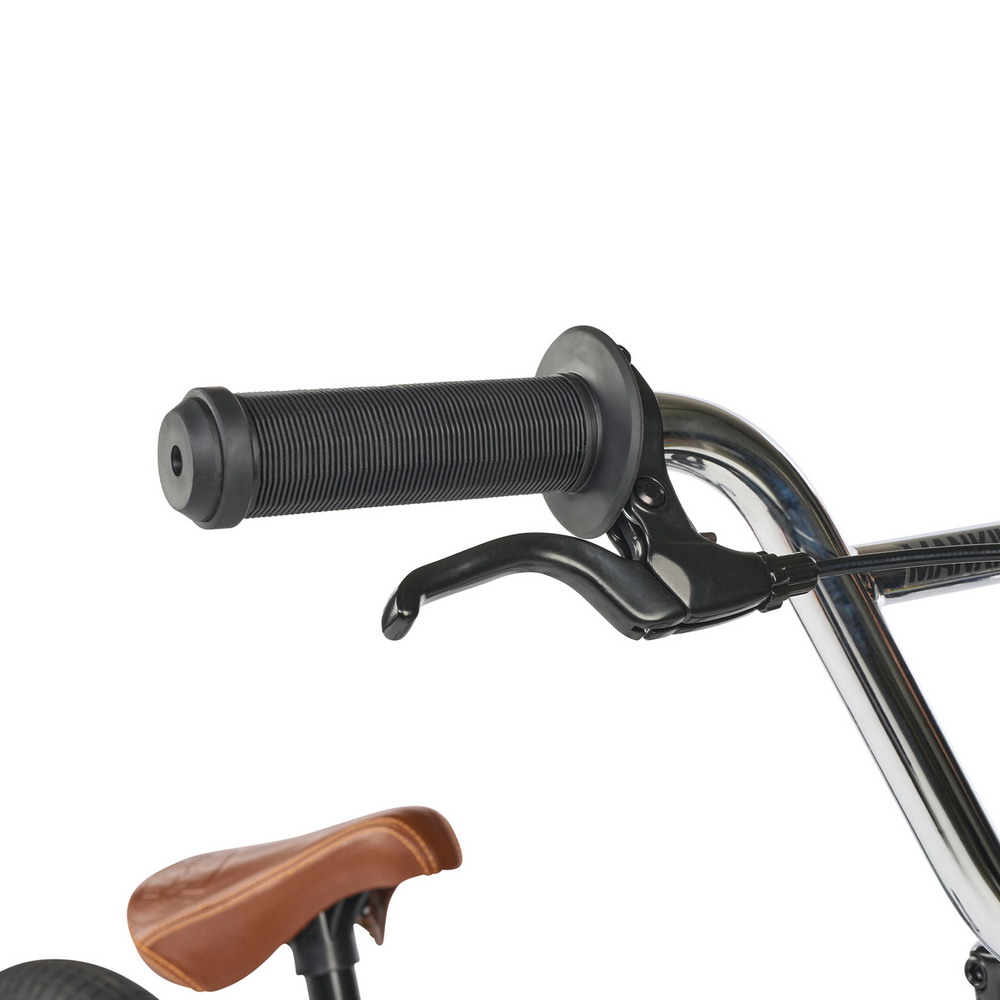

GRIPS: Mini Ribbed
BAR ENDS: Nylon

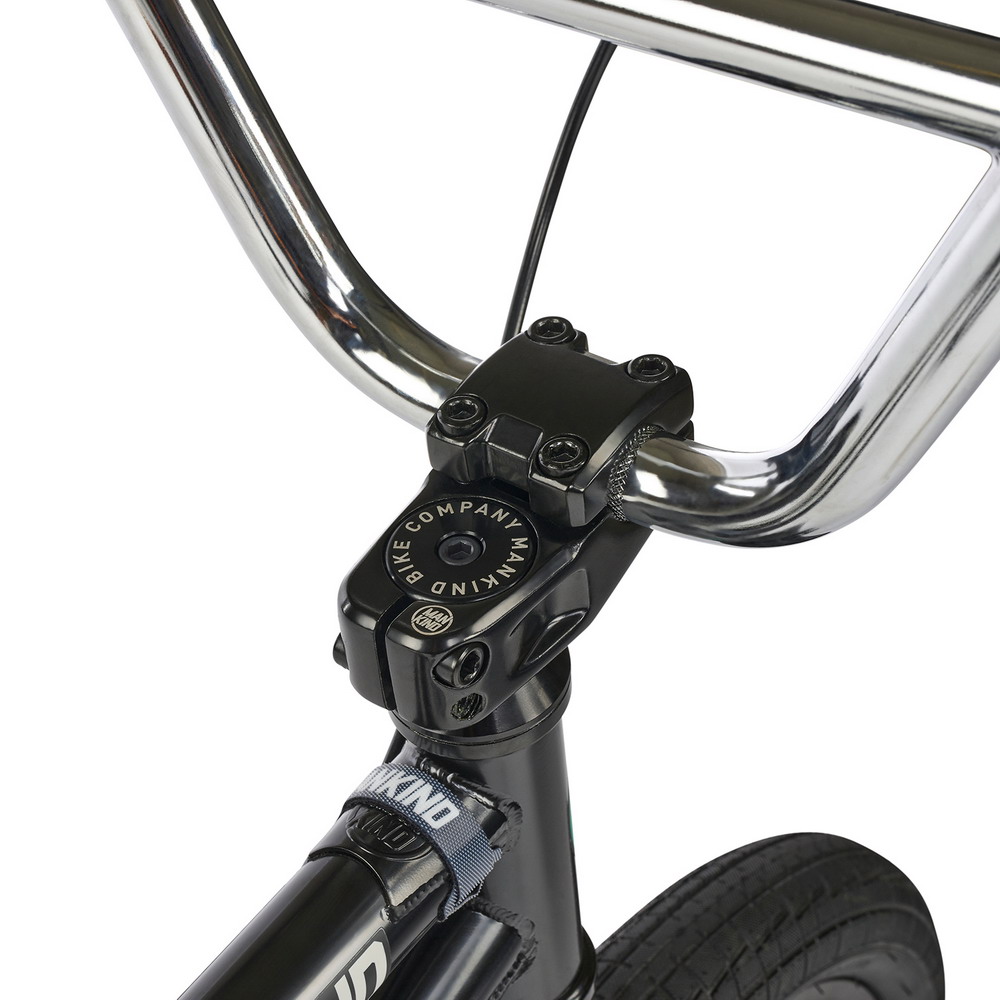

STEM: Mankind Control Top Load Stem - Alloy - 40 mm reach
HEADSET: Standard 1-1/8" Threadless
BRAKE: Alloy U-brake
BRAKE LEVER: Alloy Lever - 2-Finger Design – lever nearer to grip

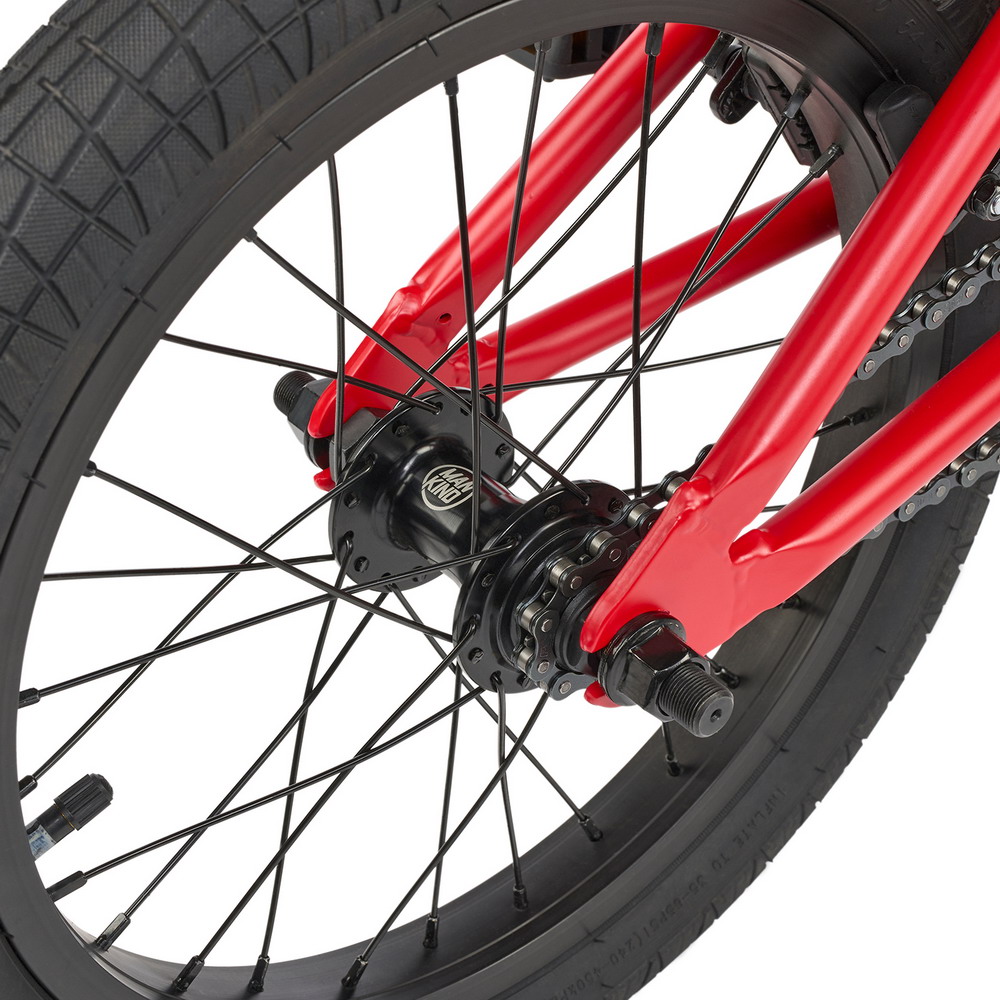

REAR HUB: Mankind Control Cassette Hub – Semi Sealed - 14 mm axle - 9t Driver
FRONT HUB: Steel - Loose Ball - 3/8" (10 mm) axle

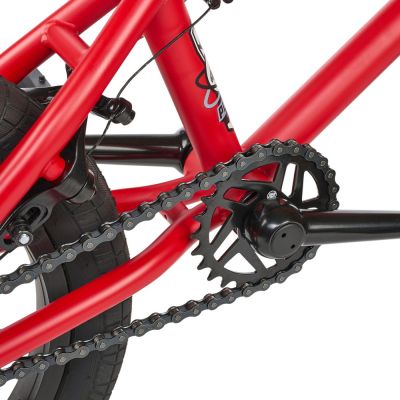

SPROCKET: Mankind Control Steel 25t
CRANKS: Alloy – 4-Spline - 3-Piece - 127 mm Length - 19 mm Spindle
BOTTOM BRACKET: Euro BB sealed - 19 mm
CHAIN: PYC 410 - black

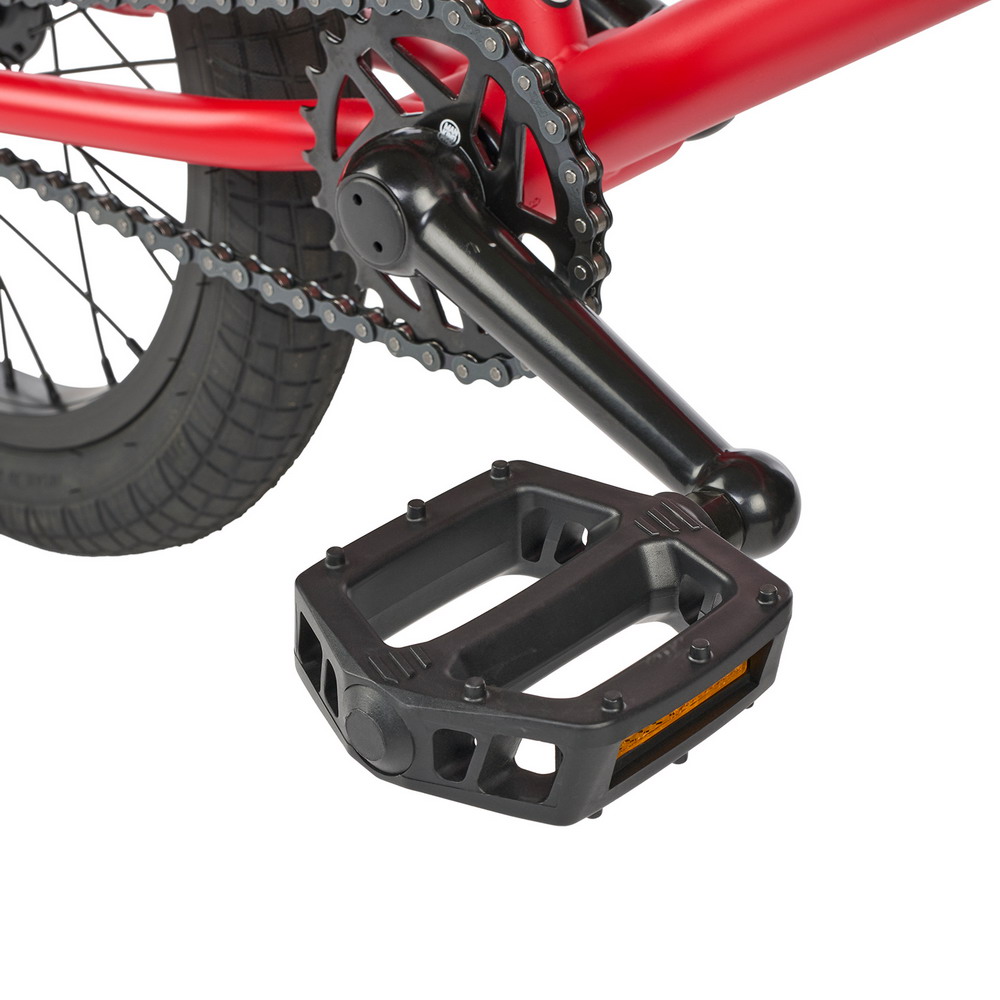

PEDALS: Plastic Platform
RIMS: 6061 Alloy - Single Wall 36H
SPOKES: Steel Spokes – 14 mm nipples - black
TIRES: Park/Street Tire 16" - 60 PSI (4.1 bar) - 2.1" Width
PEGS: None

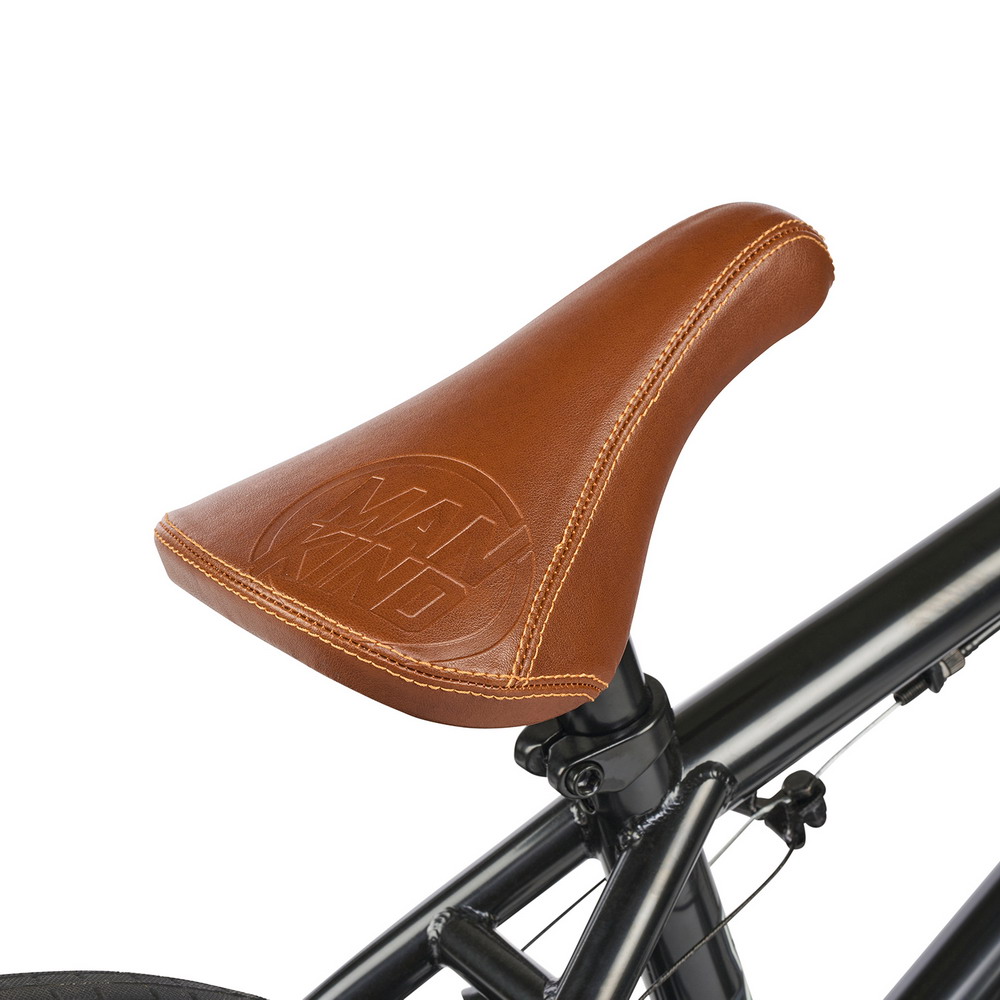

SEAT: Mankind Planet Mid Seat/Post Combo, debossed Mankind Logo
SEAT POST: Seat/Post Combo
SEAT CLAMP: Mankind Alloy - black
WEIGHT: 8.9 kg
